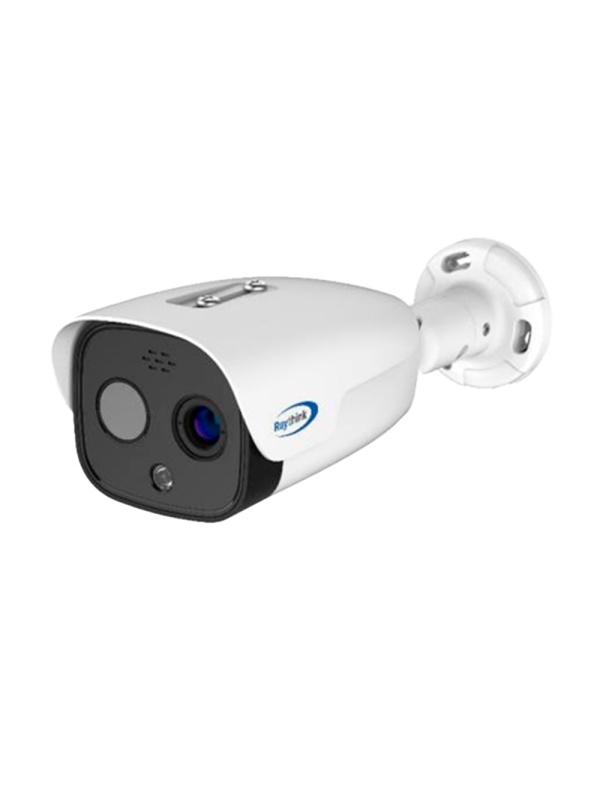

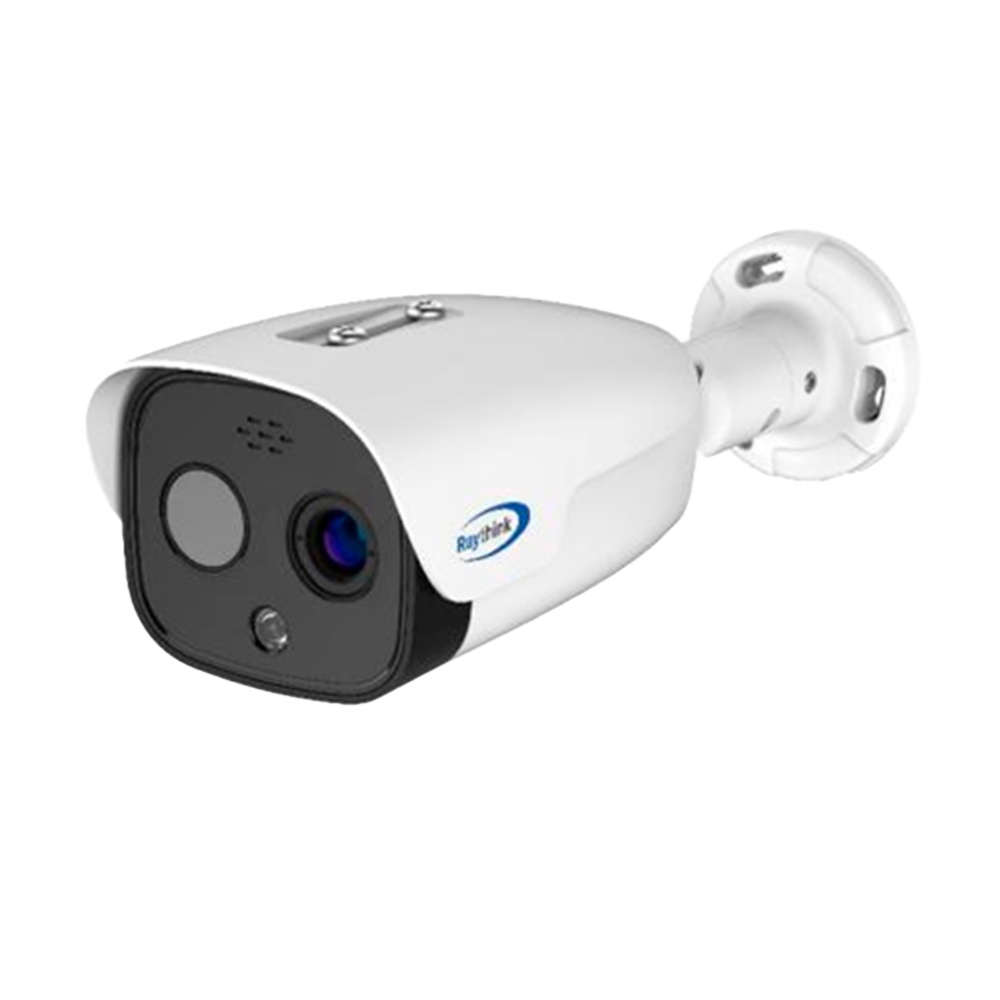

Thermal Chamber IP Raythink FC4 Series - Thermal Sensor Vox FPA 640x512 12μm Lens 35mm - Visible Sensor 1/2.8 "CMOS 5MPX | 12mm Lens - Thermal Sensitivity ≤40mk - Temperature measurement range -20 ~ 550ºC/± 2%.
€2,417.55
(IVA included)
€1,965.49
(Without IVA)
Description
| Mark | Raythink |
| Gamma | FC4 |
| Thermal sensor | Vox FPA Not Refrigerated |
| Thermal sensor resolution | 640 x 512 |
| Pixel pitch | 12μm |
| Thermal lens | 35mm |
| Thermal sensitivity | ≤40mk |
| Thermal measurement rate | -20 ~ 550ºC / ± 2ºC or ± 2% |
| Spectral strip | LWIR 8 ~ 14μm |
| Thermal vision angle | 12 ° (h) x 10 ° (v) |
| Visible sensor | 1/2.8 "Progressive scan cmos |
| Visible sensor resolution | 2560 x 1920 (5mpx) |
| Visible lens | 12mm |
| Visible viewing | 24 ° (h) x 18 ° (v) |
| Infrared illuminator | 40m. maximum |
| BI-SPETRO VISION PARAMETERS | Fusion / pip |
| Main Stream Rate | Visible: 25fps (2560 × 1920, 2560 × 1440.1920 × 1080.1280 × 720) Thermal: 25fps (1280 × 1024, 1024 × 768) |
| Sub stream | Visible: 25fps (704 × 576, 352 × 288) Thermal: 25fps (640x512, 352x288) |
| Compression | H.265 / h.264 |
| DRI | Person: 1458m (D), 365m (r), 130m (i) Vehicle: 4472m (d), 1118m (r), 399m (i) |
| Smart Analysis Intervals | Person: 195m Vehicle: 599m Temperature measurement (object 2x2m)): 972m Temperature measurement (object 1x1m)): 486m Fire detection (object 2x2m)): 3889m Fire detection (object 1x1m)): 1944m |
| VCA | Cross -line crossing, intrusion, temperature measurement and fire detection |
| Rules for Temperature | Complete window, point, line and region, several rules simultaneously |
| Alarms | 2 INPUTS / 2 Relay |
| Audio | 1 input / 1 output |
| Audio compression formats | G.711A/G.711U/AAC/PCM |
| Internal storage | MicroSD Card Skill up to 256 GB |
| Network interface | Ethernet 10/100 Baset |
| Communication | 1 x RS-485 Protocol Pelco |
| Remote access | Web browser, PC VMS software |
| Interoperability | Onvif, API, SDK |
| Food | DC 12V, 8W max. Poe IEEE802.3AF |
| Temp. operation | -40ºC ~+70ºC, <95% rh |
| Protective | IP66 waterproof |
| Dimensions | 319.5mm × 121.5mm × 103.6mm |
| Weight | 1,800g |
