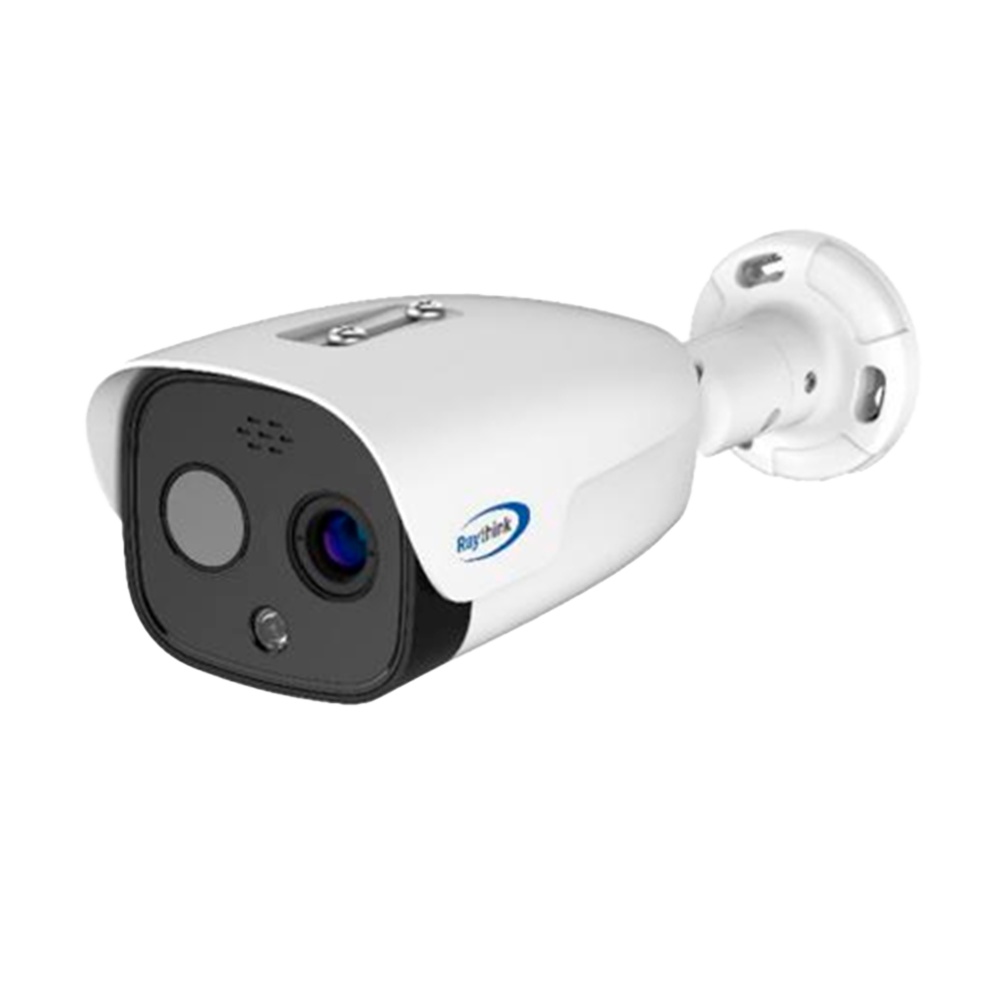

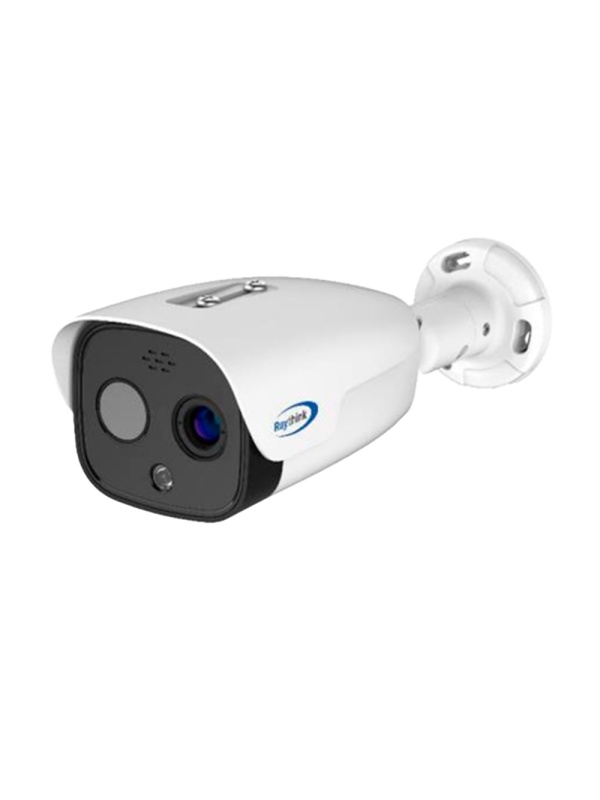

Thermal Chamber IP Raythink FC4 Series - Vox Thermal Sensor FPA 640x512 12μm Lens 13mm - Visible Sensor 1/2.8 "CMOS 5MPX | 6mm Lens - Thermal Sensitivity ≤40mk - temperature measurement range -20 ~ 550ºC/± 2ºC or ± 2%.
€2,010.58
(IVA included)
€1,634.62
(Without IVA)
Description
| Mark | Raythink |
| Gamma | FC4 |
| Thermal sensor | Vox FPA Not Refrigerated |
| Thermal sensor resolution | 640 x 512 |
| Pixel pitch | 12μm |
| Thermal lens | 13mm |
| Thermal sensitivity | ≤40mk |
| Thermal measurement rate | -20 ~ 550ºC / ± 2ºC or ± 2% |
| Spectral strip | LWIR 8 ~ 14μm |
| Thermal vision angle | 33 ° (h) x 26 ° (v) |
| Visible sensor | 1/2.8 "Progressive scan cmos |
| Visible sensor resolution | 2560 x 1920 (5mpx) |
| Visible lens | 6mm |
| Visible viewing | 46 ° (h) x 35 ° (v) |
| Infrared illuminator | 40m. maximum |
| BI-SPETRO VISION PARAMETERS | Fusion / pip |
| Main Stream Rate | Visible: 25fps (2560 × 1920, 2560 × 1440.1920 × 1080.1280 × 720) Thermal: 25fps (1280 × 1024, 1024 × 768) |
| Sub stream | Visible: 25fps (704 × 576, 352 × 288) Thermal: 25fps (640x512, 352x288) |
| Compression | H.265 / h.264 |
| DRI | Person: 542m (D), 135m (r), 68m (i) Vehicle: 1661m (D), 415m (r), 208m (i) |
| Smart Analysis Intervals | Person: 102m Vehicle: 311m Temperature measurement (object 2x2m)): 361m Temperature measurement (object 1x1m)): 181m Fire detection (object 2x2m)): 1444m Fire detection (object 1x1m)): 722m |
| VCA | Cross -line crossing, intrusion, temperature measurement and fire detection |
| Rules for Temperature | Complete window, point, line and region, several rules simultaneously |
| Alarms | 2 INPUTS / 2 Relay |
| Audio | 1 input / 1 output |
| Audio compression formats | G.711A/G.711U/AAC/PCM |
| Internal storage | MicroSD Card Skill up to 256 GB |
| Network interface | Ethernet 10/100 Baset |
| Communication | 1 x RS-485 Protocol Pelco |
| Remote access | Web browser, PC VMS software |
| Interoperability | Onvif, API, SDK |
| Food | DC 12V, 8W max. Poe IEEE802.3AF |
| Temp. operation | -40ºC ~+70ºC, <95% rh |
| Protective | IP66 waterproof |
| Dimensions | 319.5mm × 121.5mm × 103.6mm |
| Weight | 1,800g |
