Trotec Pump for Deep Well TDP 5500 and
€212.00
(IVA included)
Delivery cost is not included
Description

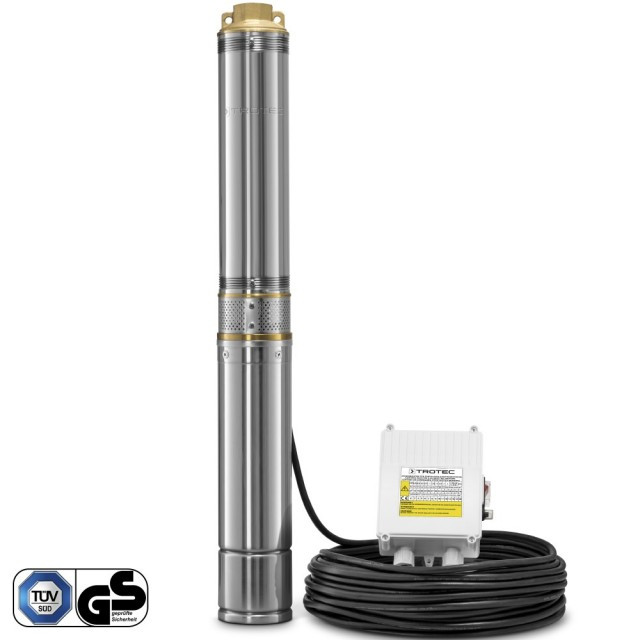

Deep well pump TDP 5500 and
1,100 W stainless steel pump with flow of up to 6,000 L / h
1,100 W stainless steel pump with flow of up to 6,000 L / h
WATER WHERE IT IS NEEDED
With the high quality TDP 5500, TDP 5500 well pump, you become independent of the local water supplier that only increases. For certainly: in the future, the tap water will also be more expensive. Sufficient reason for alternative sources available from water such as ground or rainwater to save money. The thin Deep Poço TDP 5500 and, in stainless steel with 1,100 watts of power and a 58 meter head, provides up to 6,000 liters of service water per hour from wells, water reservoirs, rainwater cisterns or drainage wells. Deep well pumps are specially designed to provide water from great depths.
Independent through natural resources.
Use free groundwater to irrigate your garden or use lawn sprinklers and other irrigation systems. The deep wells pump can also be used economically to complement the domestic water supply. For example, as an alternative source for intensive water consumption as in the case of washing machines and toilets. No way for free use water is a bad water! The integrated filter of the TDP 5500 deep well and ensures clean water without dirt particles. In addition, rainwater is softer and less limestone than tap water - which saves the washing machine and water tubes.
Promote expensive resources to the environment cheaply
Choose to buy the deep well pump TDP 5500 and Deep Well Pump is a worthwhile investment in the future - not just in the context of global climate change. Water is and remains a precious value that we should use in an economical way. Instead of consuming treated drinking water for washing, rinsing and irrigation purposes, the use of rainwater, underground or stored is an active contribution to environmental protection.
Trotec deep well pumps are specially designed and highly efficient submersible pressure pumps, which, due to their special design and high quality technology, can be used in very narrow wells, with a diameter of 11 centimeters. To make it easier to transport water from higher depths, standard equipment includes a 20 meter connection cable and suspension eyes to lower the pumps in wells, cisterns, drainage pits or similar depressions. Like all submersible pressure pumps, deep well pumps are also suitable for moving use in places of change or for permanent installation.
Tip to save
Even reused service water saves money in the long run. The cost of a private well in the garden (if not available) will pay after a few years, depending on the intensity of use. Very specialized builders help you plan and build your own garden source!
High quality technology, better finish
A sturdy stainless steel coating protects the maintenance -free copper engine and certified by Tüv. The high quality pump finish ensures a soft, lasting operation in permanent underwater use. Designed for operation throughout the year, the TDP 5500 and has a stainless steel dirt filter to protect it against particle contamination of a size of up to 0.2 mm, a return retention valve and a thermal protection circuit.
Extremely practical:
The 20 -meter submarine cable provides convenient power to the pump and the external switch box with a turmoil switch switch may be convenient and surely operated away from the installation site. To make it easier to lower the pump into the water to be pumped, the pump compartment also has two practical oversees for a rope at the top.
Immersion depth, height and flow
With a powerful max pressure. 5.8 bar, a maximum height of 58 meters and a depth of submersion up to 20 meters, the TDP 5500 and is optimally equipped to extract clean water from wells, cisterns and other alternative sources of water in large depths. Due to its compact diameter of only 100 mm, the pump is particularly recommended for 110 mm narrow hole diameters.
Surely, waterproof and dust
If electricity and water flow through a device at the same time, state -of -the -art protection mechanisms are required. With the TDP series waterproof deep well, you are always safe. The TDP 5500 deep well pump is completely tested and waterproof, according to the IP68 protection class. Thus, the pump can remain lasting in the well even when not in use. Thanks to its IP44 protection class, the splash -proof switch box allows for installation in protected external areas against rain.
The right pump for each application
Do you need a bomb for a really deep source? Then, TDP 7500 is recommended and a 93 meter elevation height and a capacity of 4,800 liters per hour. Depending on individual requirements and preferences, Clean Water Pump TWP 4005 is recommended and either 7505 and or 9005 and up to 11.5 meters and flows up to 14,000 liters per hour is recommended. For dirty water, submersible pumps of dirty water TROTEC TWP 4025 E, 7025 and E 11025 and height up to 11 meters and flow of up to 15,000 liters per hour. The TGP 1000 garden pump is filed at a height of 42 meters and a flow of 3,300 liters per hour for irrigation applications. The TGP 1025 domestic hydraulic pump is easy to install, integrating an existing home supply network, and provides a height of 30 meters and a flow of 3,300 liters per hour.
Better quality guaranteed
With TDP 5500 and, you are safe in all aspects, because it receives this deep well pump with the quality certified by Tüv as a guarantee of high value, safety and functionality.
Brand Quality plus price advantage
Reliable, powerful and suitable for the most difficult applications: these are characteristics of Trotec garden bombs. Thanks to their power, they are able to deal with extreme demands. High performance for demanding applications, because Trotec is synonymous with brand quality and professional solutions with excellent value for money!
Advantages for practice:
Technical Details:
With the high quality TDP 5500, TDP 5500 well pump, you become independent of the local water supplier that only increases. For certainly: in the future, the tap water will also be more expensive. Sufficient reason for alternative sources available from water such as ground or rainwater to save money. The thin Deep Poço TDP 5500 and, in stainless steel with 1,100 watts of power and a 58 meter head, provides up to 6,000 liters of service water per hour from wells, water reservoirs, rainwater cisterns or drainage wells. Deep well pumps are specially designed to provide water from great depths.
Independent through natural resources.
Use free groundwater to irrigate your garden or use lawn sprinklers and other irrigation systems. The deep wells pump can also be used economically to complement the domestic water supply. For example, as an alternative source for intensive water consumption as in the case of washing machines and toilets. No way for free use water is a bad water! The integrated filter of the TDP 5500 deep well and ensures clean water without dirt particles. In addition, rainwater is softer and less limestone than tap water - which saves the washing machine and water tubes.
Promote expensive resources to the environment cheaply
Choose to buy the deep well pump TDP 5500 and Deep Well Pump is a worthwhile investment in the future - not just in the context of global climate change. Water is and remains a precious value that we should use in an economical way. Instead of consuming treated drinking water for washing, rinsing and irrigation purposes, the use of rainwater, underground or stored is an active contribution to environmental protection.
Trotec deep well pumps are specially designed and highly efficient submersible pressure pumps, which, due to their special design and high quality technology, can be used in very narrow wells, with a diameter of 11 centimeters. To make it easier to transport water from higher depths, standard equipment includes a 20 meter connection cable and suspension eyes to lower the pumps in wells, cisterns, drainage pits or similar depressions. Like all submersible pressure pumps, deep well pumps are also suitable for moving use in places of change or for permanent installation.
Tip to save
Even reused service water saves money in the long run. The cost of a private well in the garden (if not available) will pay after a few years, depending on the intensity of use. Very specialized builders help you plan and build your own garden source!
High quality technology, better finish
A sturdy stainless steel coating protects the maintenance -free copper engine and certified by Tüv. The high quality pump finish ensures a soft, lasting operation in permanent underwater use. Designed for operation throughout the year, the TDP 5500 and has a stainless steel dirt filter to protect it against particle contamination of a size of up to 0.2 mm, a return retention valve and a thermal protection circuit.
Extremely practical:
The 20 -meter submarine cable provides convenient power to the pump and the external switch box with a turmoil switch switch may be convenient and surely operated away from the installation site. To make it easier to lower the pump into the water to be pumped, the pump compartment also has two practical oversees for a rope at the top.
Immersion depth, height and flow
With a powerful max pressure. 5.8 bar, a maximum height of 58 meters and a depth of submersion up to 20 meters, the TDP 5500 and is optimally equipped to extract clean water from wells, cisterns and other alternative sources of water in large depths. Due to its compact diameter of only 100 mm, the pump is particularly recommended for 110 mm narrow hole diameters.
Surely, waterproof and dust
If electricity and water flow through a device at the same time, state -of -the -art protection mechanisms are required. With the TDP series waterproof deep well, you are always safe. The TDP 5500 deep well pump is completely tested and waterproof, according to the IP68 protection class. Thus, the pump can remain lasting in the well even when not in use. Thanks to its IP44 protection class, the splash -proof switch box allows for installation in protected external areas against rain.
The right pump for each application
Do you need a bomb for a really deep source? Then, TDP 7500 is recommended and a 93 meter elevation height and a capacity of 4,800 liters per hour. Depending on individual requirements and preferences, Clean Water Pump TWP 4005 is recommended and either 7505 and or 9005 and up to 11.5 meters and flows up to 14,000 liters per hour is recommended. For dirty water, submersible pumps of dirty water TROTEC TWP 4025 E, 7025 and E 11025 and height up to 11 meters and flow of up to 15,000 liters per hour. The TGP 1000 garden pump is filed at a height of 42 meters and a flow of 3,300 liters per hour for irrigation applications. The TGP 1025 domestic hydraulic pump is easy to install, integrating an existing home supply network, and provides a height of 30 meters and a flow of 3,300 liters per hour.
Better quality guaranteed
With TDP 5500 and, you are safe in all aspects, because it receives this deep well pump with the quality certified by Tüv as a guarantee of high value, safety and functionality.
Brand Quality plus price advantage
Reliable, powerful and suitable for the most difficult applications: these are characteristics of Trotec garden bombs. Thanks to their power, they are able to deal with extreme demands. High performance for demanding applications, because Trotec is synonymous with brand quality and professional solutions with excellent value for money!
Advantages for practice:
- Consistent power of 1,100 W to pump up to 6,000 liters per hour
- Max Manometric Height: 58 m
- Ideal for pumping clean water, rainwater cisterns and reservoirs
- For the supply of useful water or irrigation of the house and gardens
- Extremely durable due to robust stainless steel coating and copper motor
- Free maintenance engine with integrated thermal protection circuit in case of overheating
- Stainless steel colander
- IP68 Pump Protection - Poeiraproof and suitable for continuous underwater operation
- IP44 Degree of Protection for the Control Box - The Respinos Proof
- External switching box
- Reliable retention valve for protection against pumped medium reflux
- 2 Survey eyes to drain the pump
- Quality certified by Tüv for deep well pump
Technical Details:
- Maximum energy consumption: 1,100 W
- Power: 1,100 W
- Flow rate: 6000 L / h
- Cable length: 20 m
- Delivery pressure: 5.8 bar
- Minimum work depth: 783 mm
- Minimum hole diameter: 110 mm
- Degree of Protection: IP68
- Thread connection: 1 1/4 "
- Dimensions (C x L x A (mm)): 783 x 92 x 100
- Weight: 12.5 kg
| Technical data | ||
|---|---|---|
| Generalities | ||
| Article No. | 4,610,000,210 | |
| Electrical values | ||
| Network connection | 220 - 240 V/50 Hz | |
| Power absorbed max. [W] | 1,100 | |
| Pump power [w] | 550 | |
| Electrical connection | ||
| Cable length [m] | 20 | |
| Performance data | ||
| Max. Transport power [L/h] | 6,000 | |
| Transportation pressure (bar) | 5.8 | |
| Granulation [mm] | 2.3 | |
| FestSstoFFGEHALT IM WASSER [%] | 0.25 | |
| Max column height. [m] | 58 | |
| Number of phases | 1 | |
| Max water temperature. [° C] | 35 | |
| Depth of immersion max. [m] | 20 | |
| Depth of minimum work [mm] | 783 | |
| Nº of rotations [RPM] | 2,850 | |
| Diameter min. Hole [mm] | 110 | |
| Environmental conditions | ||
| Ambient temperature - min. [° C] | 0 | |
| Ambient temperature - max. [° C] | 35 | |
| Security characteristics | ||
| Type of protection | IP68 | |
| Protection class | I | |
| Distribution cabinet | ||
| Connecting sheets | EEC 7/7 | |
| Cable length distribution cabinet [m] | 0.94 | |
| Protective klasse distribution cabinet | IP44 | |
| Carcass type | ||
| Stainless steel | ||
| Functions and Equipment | ||
| Dislocate switch | ||
| Thermal overload protection | ||
| Protection against thermal overload [° C] | 100 | |
| Protection against dry operation | ||
| Reflux block | ||
| Rust -free stainless steel screws | ||
| Use of traction rope | ||
| Suitable for salt water operation or permanent operation (> 10 h) | ||
| Continuous operation | ||
| Threaded connection | 1 1/4 " | |
| Accessories included | ||
| Adapter | ||
| Suitable for hose (lw hose) | ||
| Threaded | ||
| 12 m wear resistant nylon rope | ||
| Dimensions | ||
| Length (without packaging) [mm] | 783 | |
| Width (no packaging) [mm] | 92 | |
| Height (no packaging) [mm] | 100 | |
| Weight | ||
| (No packaging) [kg] | 12.5 | |
