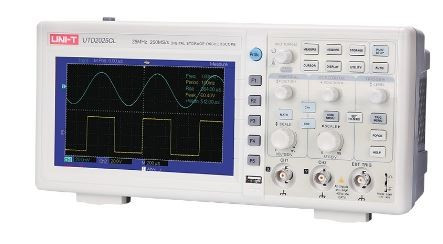

USB digital oscilloscope 25mHz 2 channels - UNI -T

Description

High -performance 2 -channel storage oscilloscope and an extra large backlight display designed with a comfortable USABLILITY with extremely rapid implementation of measurement inputs.

- Channels: 2
- Band width: 25 MHz
- Sampling rate: 250 ms / s
- Elevation time: <14ns
- Memory depth: 25 kpts
- Waveform Acquisition Classification:> 2000 WFMS / S
- Vertical sensitivity: 1 mv / div ~ 20v / div
- Horizontal time base: 10 ns / div ~ 50s / div
- Memory Forms: Setup, Wave, Bitmap
- Trigger type: edge, pulse, video, alternating
- Interfaces: USB OTG, pass / fail

-Power supply: 100-240 V Ca, 40-440Hz
- Display: 7 ", 64k full LCD colors, 400x240 pixels
- Weight: 2.2 kg
- Dimensions: 306 x 147 x 122 mm
- Includes: digital storage oscilloscope, 2 probes, power cord, USB cable, PC software, user manual
