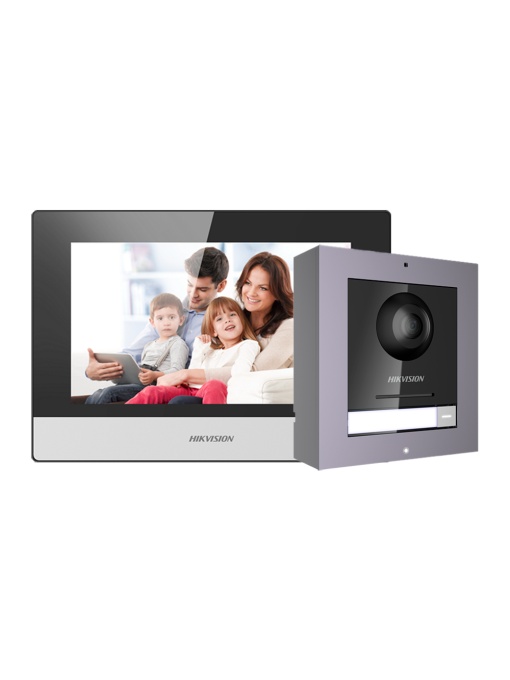

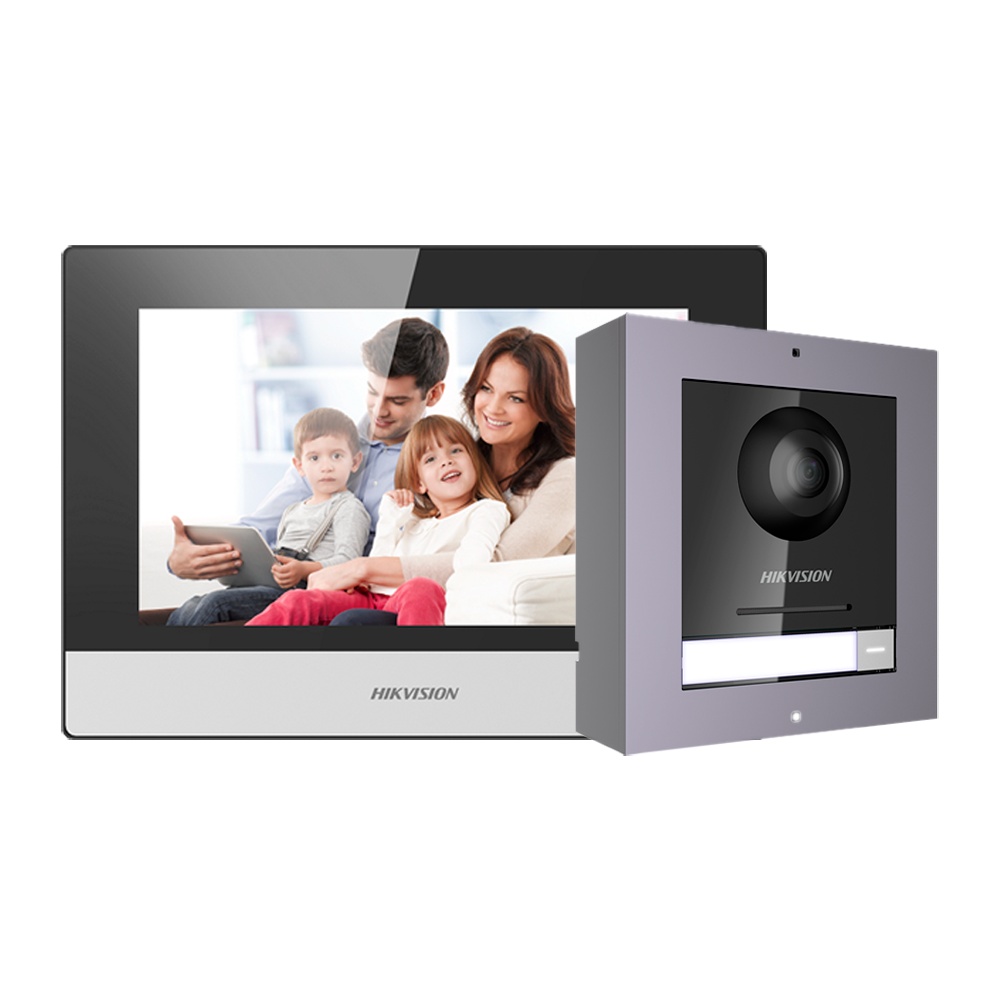

Video Party Kit - IP & AMP; WiFi - Plate and Monitor | Allows 16 more monitors - POE and microSD switch - mobile application with P2P | Internal Relays on Monitor - Surface Assembly | IP65
€340.63
(IVA included)
€276.94
(Without IVA)
Delivery cost is not included
Description
Switch | |
| Interface | 4 ports poe rj45 + 1 uplink port |
| Speed ports | 4 x 10/100, 1 x 10/100 Mbps |
| Electric power supply | Up to 30 W per door (35 W for the entire device) |
| Poe Characteristics | According to Norma IEEE 802.3AT POE+ / IEEE 802.3AF POE |
| Food | DC 48 V / 800 MA Max. |
| Operating temperature | 0º C - 40º C |
| Dimensions | 83.1 (FO) X 27.6 (AL) X 105 (AN) MM |
DS-KD8003-IME1 (B) | |
| Mark | Hikvision |
| Model | DS-KD8003-IME1 (B) |
| Operating system | Linux |
| Image sensor | Low lighting 2 MPX IR |
| Image Functions | BLC / WDR / DNR |
| Vision angle | H: 146º, V: 82º, D: 180º |
| Audio | Bidirectional audio with microphone and speaker |
| Keyboard | LED customization label mechanic button |
| Exits | 2 x lock relay, 1 x module output, 1 x cc 12 v / 500 mA max .. |
| Input | 4 x Auxiliary inputs (output button, return, door sensor), 1 x Tamper |
| Remote access | Software IVMS-4200 Hik-Connect Mobile Application |
| Network interface | Ethernet 10/100 Baset / SIP 2.0 Protocol |
| Modulate | Compatible with Hikvision modular plates |
| Food | DC 12 V / 850 MA Max. / Poe (IEEE 802.3AF) |
| Degree of protection | Apt for outer ip65 |
| Material | Plastic |
| Temp. operation | -40º C ~ +60º C |
| Dimensions | 98 (AL) X 100 (LG) X 42 (FD) MM |
| Weight | 360 g |
DS-KH6320-WTE1 | |
| Mark | Hikvision |
| Model | DS-KH6320-WTE1 |
| Operating system | Linux |
| Screen type | 7 "TFT color tactile screen |
| Screen resolution | 1024 x 600 |
| Input | 8 x configurable alarm inputs, 1 x rs485 |
| Exits | 2 x relay exits |
| Audio | Bidirectional audio with integrated microphone and loudspeaker Noise reduction and cancellation of eco |
| Memory | MicroSD Card Groove (up to 128 GB) |
| Connection | Ethernet 10/100 Baset / RTSP / SIP 2.0 / WiFi Protocol 802.11 B / g / n (for application to application via P2P)))) |
| Remote access | Software IVMS-4200 Hik-Connect Mobile Application |
| Food | DC 12 V / 1 to max. / Poe IEEE802.3AF |
| Temp. operation | -10º C ~ +55º C |
| Dimensions | 140 (AL) X 200 (LG) X 15 (FD) MM |
| Weight | 355 g |
| Slave monitors | It is not possible to use Android DS-KH9310 and DS-KH9510 monitors as slaves |
