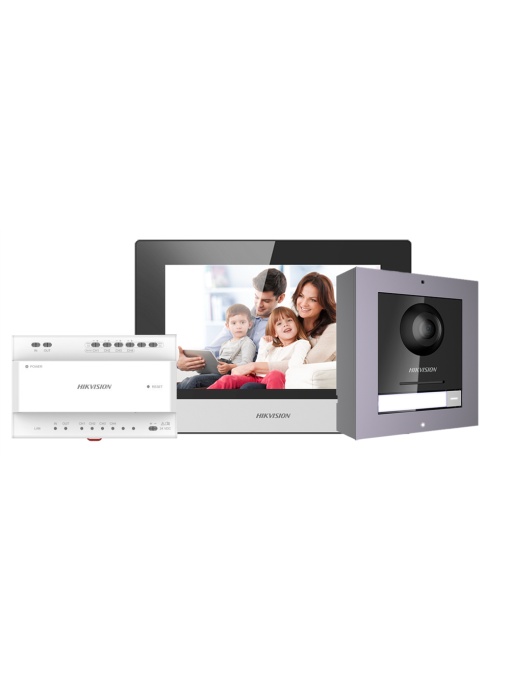

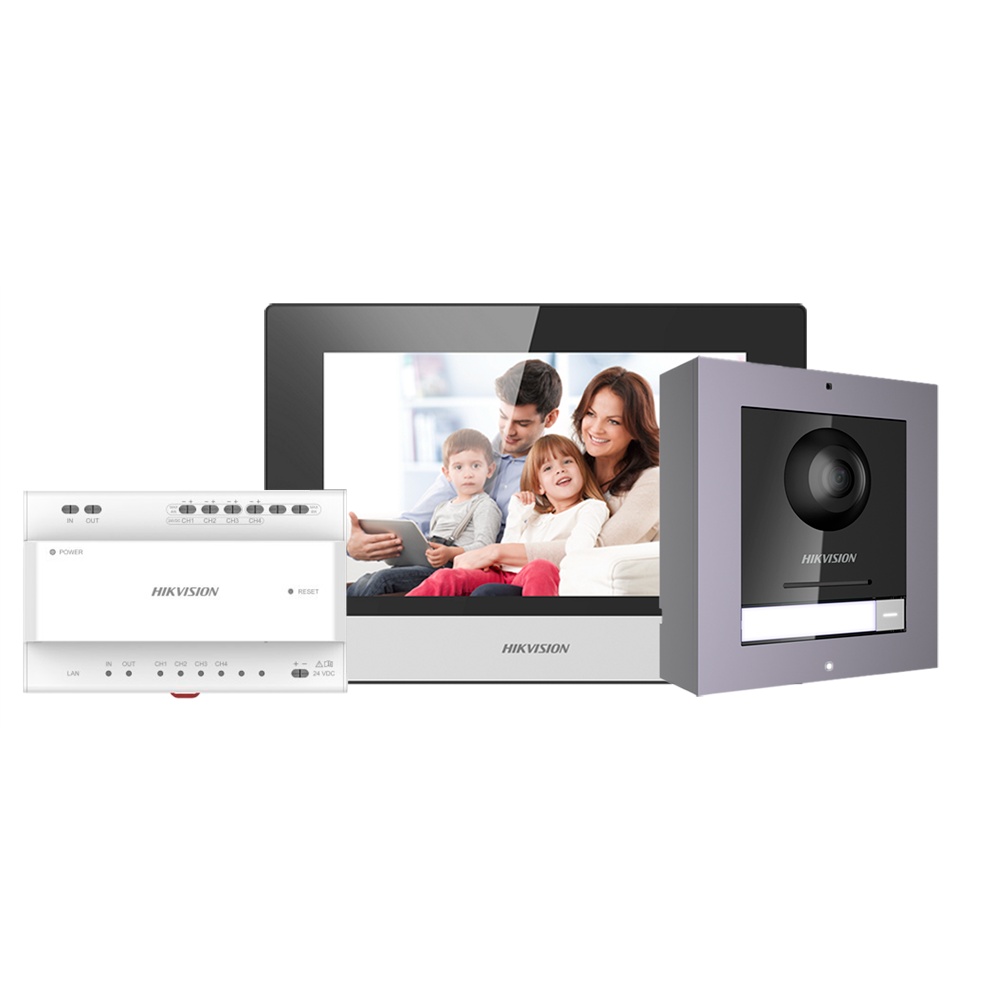

Videoport Kit - Technology 2 wires with TCP/IP and WiFi - Plate and Monitor | Allows 16 more monitors - Easy to configure without network - mobile application with P2P | Internal Relays on Monitor - Surface Assembly | IP65
€369.97
(IVA included)
€300.79
(Without IVA)
Description
DS-KD8003Y-IME2 | |
| Mark | Hikvision |
| Model | DS-KD8003Y-IME2 |
| Operating system | Linux |
| Image sensor | Low lighting 2 MPX IR |
| Image Functions | BLC / WDR / DNR |
| Vision angle | H: 146º, V: 82º, D: 180º |
| Audio | Bidirectional audio with microphone and speaker |
| Keyboard | LED customization label mechanic button |
| Exits | 2 x lock relay, 1 x module output, 1 x cc 12 v / 500 mA max .. |
| Input | 4 x Auxiliary inputs (output button, return, door sensor), 1 x Tamper |
| Remote access | Software IVMS-4200 Hik-Connect Mobile Application |
| Network interface | Network connection via 2 wires / SIP 2.0 protocol |
| Modulate | Compatible with Hikvision modular plates |
| Food | DC 24 V with hub 2 wires / 12 V / 1700 ma max. |
| Degree of protection | Apt for outer ip65 |
| Material | Plastic |
| Temp. operation | -40º C ~ +60º C |
| Dimensions | 98 (AL) X 100 (LG) X 42 (FD) MM |
| Weight | 374 g |
DS-KH6320Y-WTE2 | |
| Mark | Hikvision |
| Model | DS-KH6320Y-WTE2 |
| Operating system | Linux |
| LCD | 7 "TFT color tactile screen |
| Screen resolution | 1024 x 600 |
| Input | 8 x configurable alarm inputs, 1 x rs485 |
| Exits | 2 x relay exits |
| Audio | Bidirectional audio with integrated microphone and loudspeaker Noise reduction and cancellation of eco |
| Memory | MicroSD Card Groove (up to 128 GB) |
| Connection | 2 wires / RTSP / SIP 2.0 / WiFi Protocol 802.11b / g / n (for application only via P2P)))))) |
| Remote access | Software IVMS-4200 Hik-Connect Mobile Application |
| Food | Through a Hikvision Hub specific for 2 wire (6 W max.) Video input systems. |
| Temp. operation | -10º C ~ +50º C |
| Dimensions | 140 (AL) X 200 (LG) X 15 (FD) MM |
| Weight | 327 g |
| Slave monitors | It is not possible to use Android DS-KH9310 and DS-KH9510 monitors as slaves |
DS-KAD704Y | |
| Mark | Hikvision |
| Model | DS-KAD704Y |
| Mode of operation | Food, video and audio via technology 2 wires |
| Exits | 4 channels of 2 wires |
| Cascade | 2 channels for DS-KAD706Y or DS-KAD706Y connection |
| Communication | Technology 2 wires (up to 4 devices) |
| Network interface | Ethernet 10/100 Baset |
| Food | DC 24 V / 2.5 max. |
| Temp. operation | -10º C ~ +55º C |
| Dimensions | 144 (LG) X 92 (AL) X 66 (PF) MM |
| Weight | 250 g |
