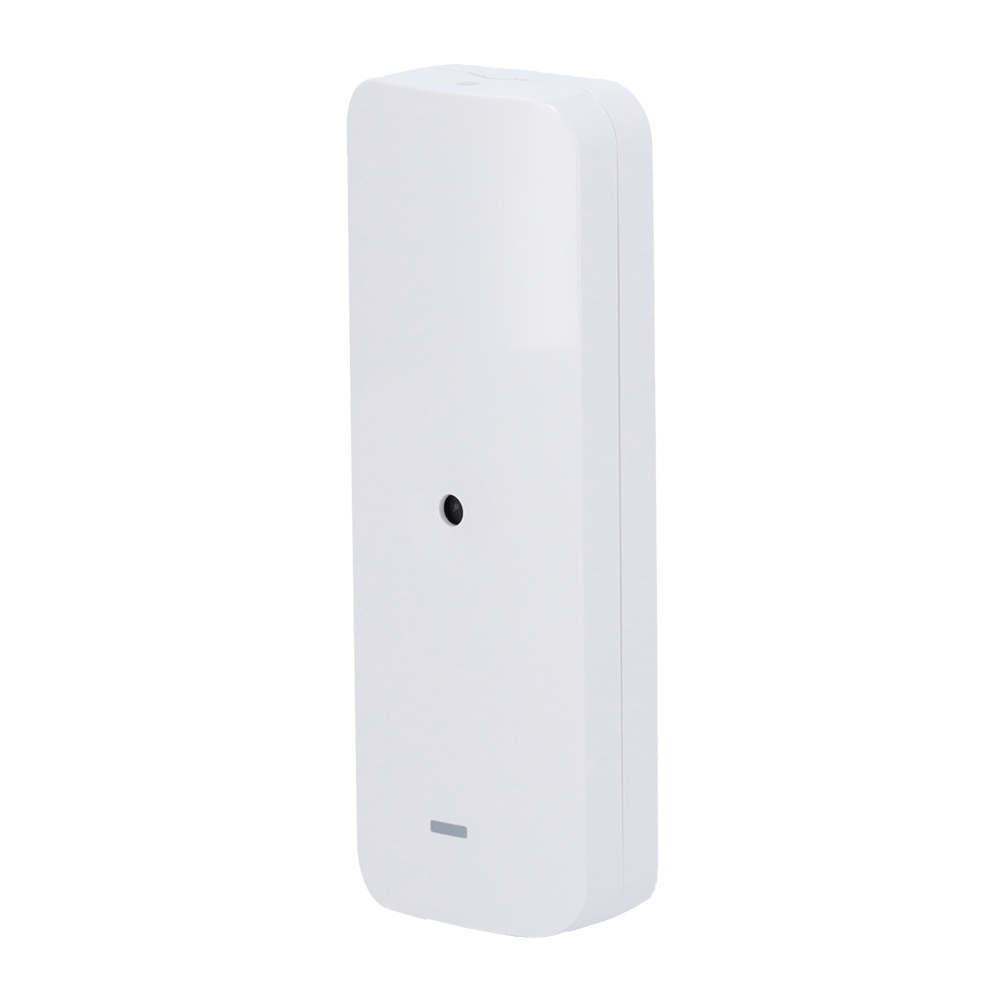

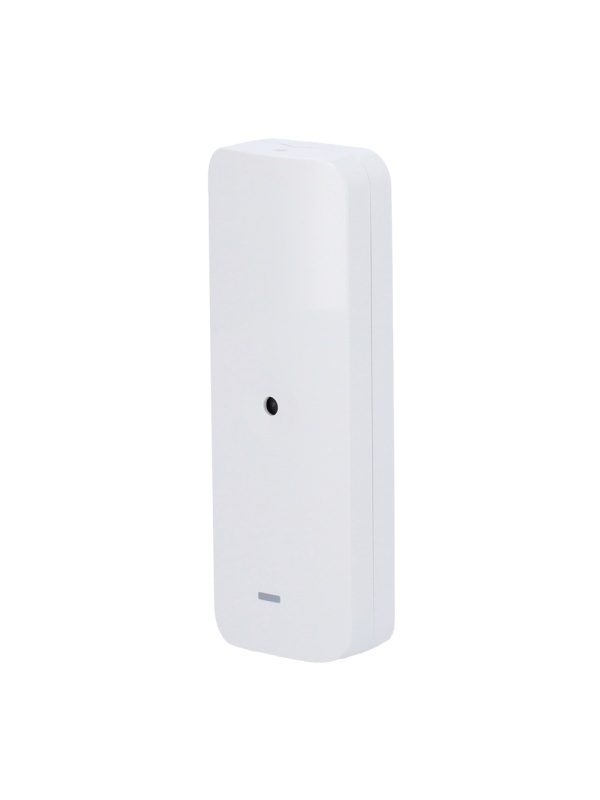

Wire Breaker Detector - 8 m / 120 ° Detection range - Food 9 ~ 16 VDC - SELECTIBLE EOL Resistances - Use Certificate - Grade 2 Certificate
€14.23
(IVA included)
€11.57
(Without IVA)
Delivery cost is not included
Description
| Mark | Hikvision |
| Model | DS-PDBG8-EG2 |
| Degree of security | Grade 2 |
| Sensor | Omnidirectional Electred Microphone |
| Transmission method | Wiring |
| Detection range | 8 meters / 120º |
| Glass type | Floating glass, glass plate, tempered, equipped, laminate and double glass |
| Glass thickness | From 2.4 mm to 6.4 mm |
| Sensitivity | Adjustable (potentiometer) |
| Cabbada exits | Alarm and Tamper Anti Opening |
| Alarm outlet | Normally closed (NC) |
| Line end resistances (EOL) | Selectable EOL Alarm: 1k, 2k2, 4k7, 5k6, 6k8 EOL TAMPER: 1k, 2k2, 4k7, 5k6 |
| LED indication | High Frequency Activation: Red Low frequency activation: green Alarm: Blue |
| Food | 9 ~ 16 VDC (nominal at 12 V) |
| Consumption | Inactive mode consumption 25 mA |
| Installation | Wall and ceiling. Inner use |
| Temp. operation | -10 ° C ~ +55 ° C |
| Moisture | 10% ~ 90% |
| Dimensions | 107 (AL) X 38.8 (AN) X 24.5 (FO) MM |
