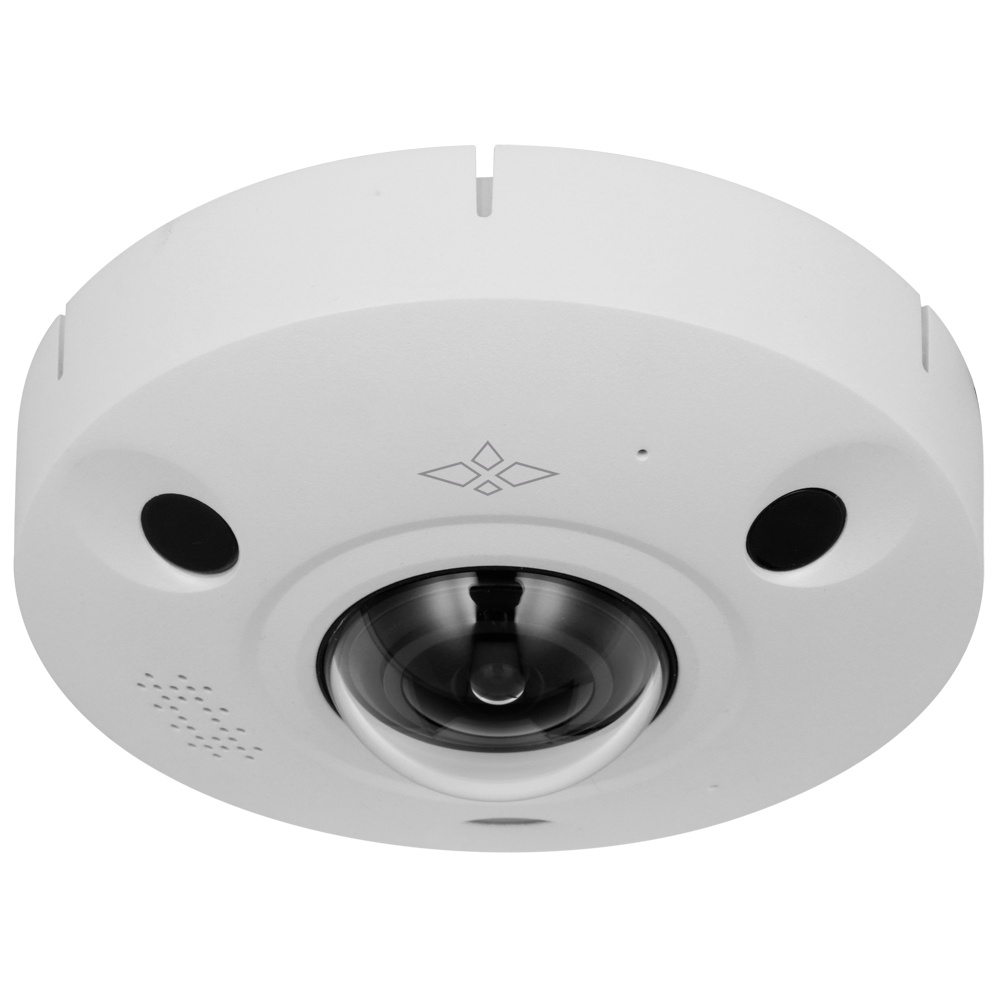

X -Security Chamber IP Domo Fisheye - 8 Megapíxel (3820x2480) - 1.85mm 360º - IR 10m | Dewarping - IVS | Heat Map | Personas - Microsd 256GB | IP67 & amp; IK10
€714.42
(IVA included)
Description
| Mark | X-security |
| Imagen Sensor | 1/1.7 ”Progressive CMOS |
| Maximum resolution | 8 megapixel (3280x2480) |
| Lens | 1.85mm (total coverage 360º) |
| Viewing mode | Frontal (Dewarping by Hardware): 1st / 1p / 2p / 1r / 2r / 4r / 1O + 3r O: VIEW FISHEYE PEZ Q: Panoramic view A: View of Región de Imagen TRASERO (Dewarping by SOFTAWARE) - Vista Fisheye - Panoramic view 360º + PTZ - Dual channel 180º Each channel - FISHEYE + 2PTZ - Fisheye + 3ptz - FISHEYE + 4PTZ - 360º PANO + 6PTZ - Fisheye + 8ptz - 180º PANAL VIEW - 180º PANAL VIEW + 3PTZ - 180º PANAL VIEW + 4PTZ - 180º PANAL VIEW + 8PTZ |
| Video frame | Fisheye Mode: 1st (3280 × 2480) 1p (4096 × 1024) 2p (2432 × 2432) 1R (1216 × 1216) 2R (2432 × 2432) 4R (2432 × 2432) 1st + 3R (2432 × 2432) |
| Tasa Main Stream | 8m (3280x2480@1–25/30 fps) |
| TASA EXTRA STREAM | 704 × 576@1–25/30 fps |
| Tasa Tercer Stream | 1280x960@1–25/30 fps |
| Compression | H.265+/h.265/h.264+/h.264 |
| Dari | 40 (D), 16 (O), 8 (R), 4 (I) |
| IVS (Perimeter Protección) | Cruce de Linea and Intrusion |
| I CONTEA PERSONAS | I contain personas en area (inputs / salid / inside). HASTA CONFIGURE 4 AREAS Anuales/Mensuales/Diarias Y Personalized Alarm Activation in case of overcoming permitted Aforo |
| Heat map | Si |
| Imagen Mejoras | DWDR, 3dnr, AWB, AGC, Blc, HLC, Privacy Masking, ROI |
| Audio | 1 input channel (Puerto RCA) 1 Salida Channel (Puerto RCA) Integrated microphon |
| Red Interfaz | Ethernet 10/100 Baset |
| Internal almodenamynto | Microsd Tarjeta Hasta 256 GB (Included) |
| Alarms | 2 INPUTS: 5MA 3V - 5V DC 2 salis: 300ma 12V DC |
| Remote Access | Interfaz Web, CMS (DSS/PSS), Smartphone Y NVR |
| Interoperabilidad | Onvif |
| Food | DC 12 V / 13W, Poe IEEE802.3AF |
| Material | Metal |
| Protective | IP67 waterproofing, antivandal IK10 |
| Temp. work | -40º C ~ +60º C |
| Dimensions | 59.8 mm (FO) x 149.8 (Ø) mm |
| Weight | 790 g |
