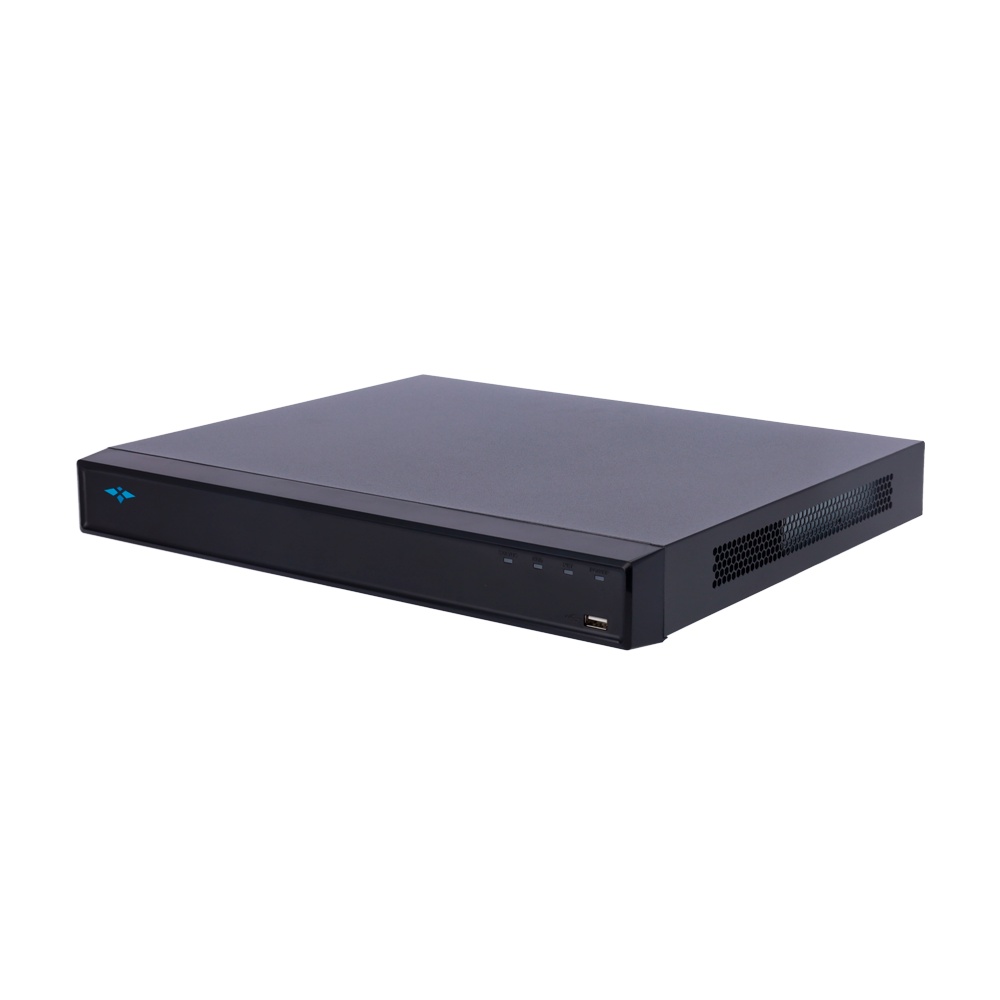

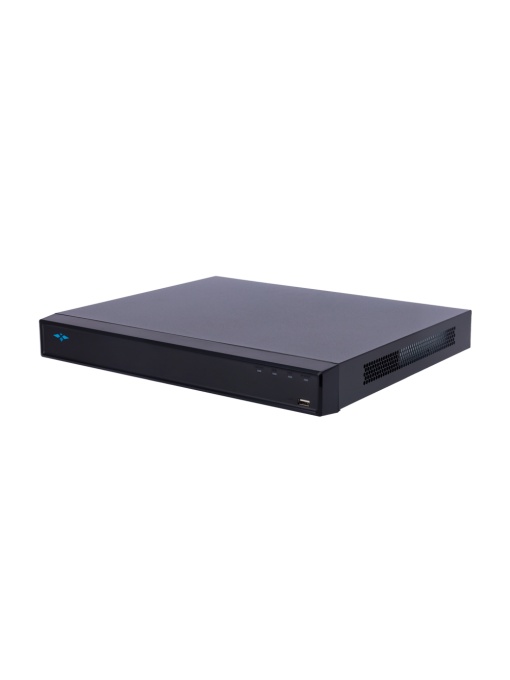

X -Security NVR Acupick - 8 CH IP | 8 CH POE - Maximum Resolution 32 Megapixel - Smart H.265+; H.265; Smart H.264+; H.264; MJPEG - 1 x HDMI and VGA output - Smart Functions
€401.87
(IVA included)
€326.72
(Without IVA)
Description
| Mark | X-security |
| IP Cameras inputs | LAN door up to 8 channels |
| Poe doors | 8 doors, 10/100 Mbps, IEEE 802.3 AF/AT, 1-8 EPOE compatible doors |
| Bandwidth | AI deactivated: 384 input Mbps, 384 Mbps of Recording and 384 Mbps output Activated by AI: 200 input Mbps, 200 Mbps of recording and 200 mbps output |
| Aggregate n+m | Supported |
| Video exits | 1 HDMI 4K and 1 VGA |
| Bidirectional audio | 1 input, 1 output, RCA |
| Video Compression Format | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG |
| Display resolution | 32 MP; 24 MP; 16 MP; 12 MP; 8 MP; 5 MP; 4 MP; 1080p; 720p; D1; CIF; Qcif |
| Decoding capacity | AI deactivated: 2 channels 32 MP@20 fps; 2 channels 24 MP@20 4 fps; 16 channels MP@30 5 fps; 12 channels MP@30 8 fps; 8 channels MP@30 12 FPS; 5 channels MP@30 16 fps; 4 channels MP@30 32 FPS; 1080p@30 channels [%var%] fps Ai activated 1 channel 32 MP@20 fps; 1 channel 24 MP@20 fps; 2 channels 16 MP@30 fps; 4 channels 12 MP@30 fps; 4 channels 8 MP@30 fps; 8 channels 5 MP@30 fps; 12 channels 4 MP@30 fps; FPS 24p@1080 of 30 channels |
| WAS BOARDATOR | Facial detection; Facial recognition; Perimeter protection; SMD PLUS |
| Camera | Facial detection; facial recognition; Video metadata (humans, motorized and non -motorized vehicles); perimeter protection; SMD Plus; stereo analysis; multitudes distribution; Counting of people; ANPR; vehicle density; heat mapping |
| ACUPICK AI FOR House + recorder | Max. 16 channels, 1 event combined by channel (IS) |
| IMA perimeter yield by recorder (number of channels) | 4 channels, 10 SIV rules for each channel |
| Perimeter performance of the AI by Camera (number of channels) | 8 channels |
| Faces detection | Sex; Age group; Glasses; Expressions; Mask; Beard |
| Network door | 1 (Ethernet port 10/100/1000 Mbps, RJ-45)))) |
| AI facial detection performance by recorder (number of channels) | 2 channels (up to 12 facial images per channel) |
| AI faces detection performance by Camera (number of channels) | 8 channels |
| Face database capacity | Up to 20 faces databases with 20,000 images can be added, with a total capacity of 2.5 G. Name, gender, date of birth, address, type of credential, credential number, countries and regions and state can be added to each facial image. |
| AI facial recognition performance by recorder (number of channels) | 1. FD 8 channels (per Camera) + FR (by recorder), Image Flow: 16 Facial Images / S 2. 2-channe FD (by recorder) + FR (by recorder), Video Flow: 12 facial / s images |
| AI facial recognition performance by Camera (number of channels) | 8 channels |
| SMD PLUS | SMD Plus by recorder; 8 Channels: Secondary filtering for human and motorized vehicles, reducing false alarms caused by leaves, rain and lighting conditions variable SMD Plus by Camera; 16 channels |
| AI metadata transfer rate by Camera (number of channels) | 8 channels |
| Human attributes | Top color, upper type, bottom color, lower type, hat, suitcase, age, gender and umbrella |
| Recording method | Manual, programmed, motion detection, alarm |
| Intelligent Functions | Line crossing, intrusion, abandoned object, face detection, heat map |
| Backup | USB (Memory, HDD, CD-RW, DVR-RW) / Network / SATA |
| Motor vehicle attributes | Registration, registration color, vehicle body, vehicle model, vehicle logo, call signal, seat belt, vehicle interior, location of the vehicle. |
| Attributes of non -motorized vehicles | Vehicle model, vehicle color, number of people, helmet. |
| ANPR by Camera (number of channels) | 8 channels |
| Enrollment database capacity | 1. Creates up to 20,000 enrollment numbers. 2. List of lock and permissions list |
| Alarms | 4 INPUTS / 2 Relay No / NC |
| Internal storage | 2 HDD SATA 3.5 "up to 16 tb (not included) |
| Access to third party Cameras | Onvif; Panasonic; Sony; Axis; Arecont; Pelco; Canonigo; Samsung |
| Communication | 2xusb Ports/1 RJ45 10/100/1000m (Ethernet) |
| Remote access | Browser (ActiveX), mobile application or PSS software |
| Food | 100 ~ 240 VAC / 25.5W |
| Energy Consumption Poe | Total POE output power is 130 W, the maximum output power of a single door is 25.5 W |
| Dimensions | 53 (AL) X 375 (AN) X 329.4.1 (FO) MM / |
| Weight | 2.57 kg |
