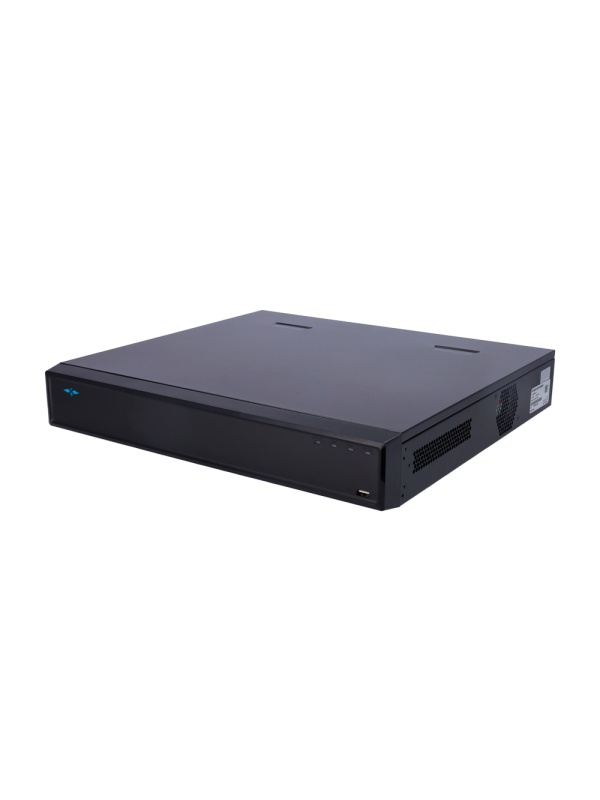

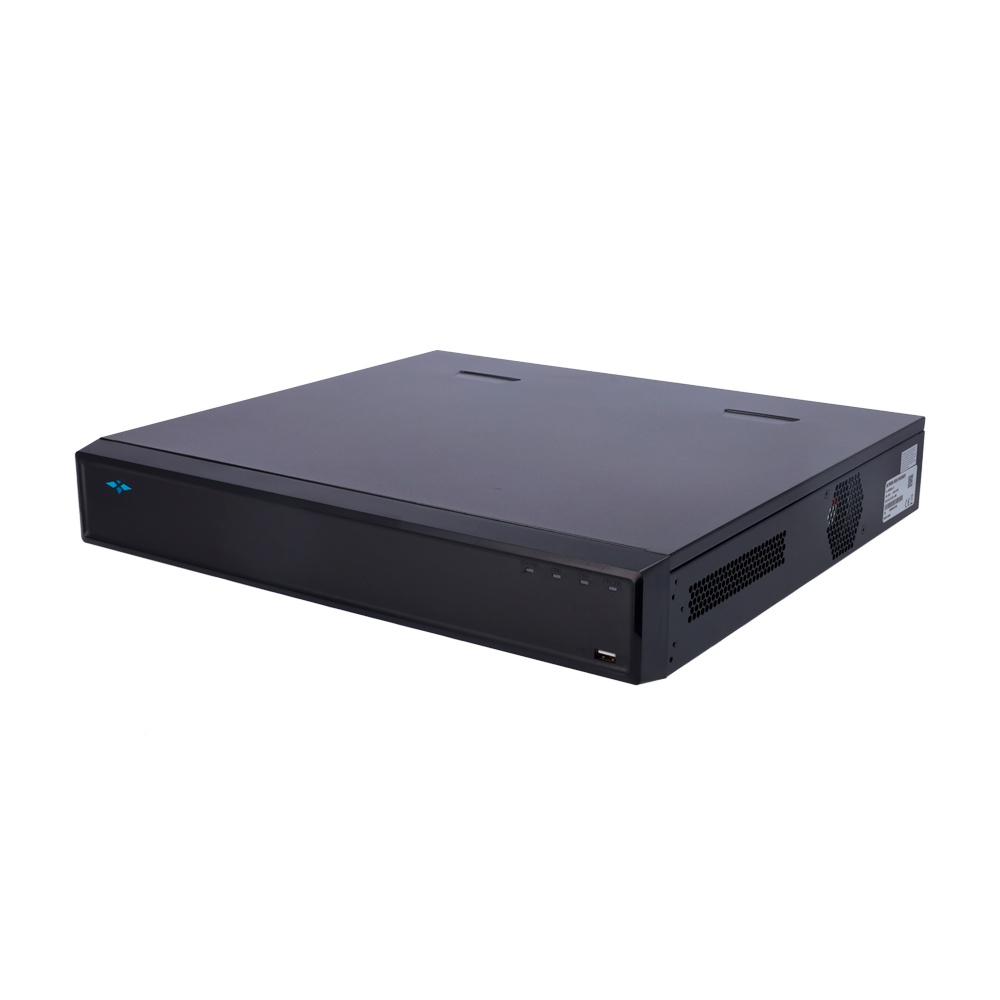

X -Security NVR Acupick recorder - 64 CH IP - Maximum Resolution 32 Megapixel - Smart H.265+; H.265; Smart H.264+; H.264; MJPEG - 2 x HDMI and VGA output - Smart Functions
€586.85
(IVA included)
€477.11
(Without IVA)
Description
| Mark | X-security |
| IP Chambers inputs | LAN port up to 64 channels |
| Bandwidth | AI deactivated: 384 input Mbps, 384 Mbps of Recording and 384 Mbps output Activated by AI: 200 input Mbps, 200 Mbps of recording and 200 mbps output |
| Video exits | 2 HDMI 4K and 2 VGA |
| Bidirectional audio | 1 input, 1 output, RCA |
| Video Compression Format | H.265+ / h.264+ |
| Display resolution | 32 MP; 24 MP; 16 MP; 12 MP; 8 MP; 5 MP; 4 MP; 1080p; 720p; D1; CIF; Qcif |
| Decoding capacity | AI deactivated: 2 channels 32 MP@20 fps; 2 channels 24 MP@20 4 fps; 16 channels MP@30 5 fps; 12 channels MP@30 8 fps; 8 channels MP@30 12 FPS; 5 channels MP@30 16 fps; 4 channels MP@30 32 FPS; 1080p@30 channels [%var%] fps Ai activated 1 channel 32 MP@20 fps; 1 channel 24 MP@20 fps; 2 channels 16 MP@30 fps; 4 channels 12 MP@30 fps; 4 channels 8 MP@30 fps; 8 channels 5 MP@30 fps; 12 channels 4 MP@30 fps; FPS 24p@1080 of 30 channels |
| WAS BOARDATOR | Facial detection; Facial recognition; Perimeter protection; SMD PLUS |
| Camera | Facial detection; facial recognition; Video metadata (humans, motorized and non -motorized vehicles); perimeter protection; SMD Plus; stereo analysis; multitudes distribution; Counting of people; ANPR; vehicle density; heat mapping |
| ACUPICK AI FOR House + recorder | Max. 16 channels, 1 event combined by channel (IS) |
| IMA perimeter yield by recorder (number of channels) | 4 channels, 10 SIV rules for each channel |
| Perimeter performance of the AI by chamber (number of channels) | 16 channels |
| Faces detection | Sex; Age group; Glasses; Expressions; Mask; Beard |
| Network door | 2 (Ethernet port 10/100/1000 Mbps, RJ-45)))) |
| AI facial detection performance by recorder (number of channels) | 2 channels (up to 12 facial images per channel) |
| AI faces detection performance by chamber (number of channels) | 16 channels |
| Face database capacity | Up to 20 faces databases with 20,000 images can be added, with a total capacity of 2.5 G. Name, gender, date of birth, address, type of credential, credential number, countries and regions and state can be added to each facial image. |
| AI facial recognition performance by recorder (number of channels) | 1. 16 channel FD (per chamber) + FR (by recorder), Image Flow: 16 Facial Images / S 2. 2-channe FD (by recorder) + FR (by recorder), Video Flow: 12 facial / s images |
| AI facial recognition performance by chamber (number of channels) | 16 channels |
| SMD PLUS | SMD Plus by recorder; 8 Channels: Secondary filtering for human and motorized vehicles, reducing false alarms caused by leaves, rain and lighting conditions variable SMD Plus by Chamber; 16 channels |
| AI metadata transfer rate by chamber (number of channels) | 8 channels |
| Human attributes | Top color, upper type, bottom color, lower type, hat, suitcase, age, gender and umbrella |
| Recording method | Manual, programmed, motion detection, alarm |
| Intelligent Functions | Line crossing, intrusion, abandoned object, face detection, heat map |
| Backup | USB (Memory, HDD, CD-RW, DVR-RW) / Network / SATA |
| Motor vehicle attributes | Registration, registration color, vehicle body, vehicle model, vehicle logo, call signal, seat belt, vehicle interior, location of the vehicle. |
| Attributes of non -motorized vehicles | Vehicle model, vehicle color, number of people, helmet. |
| ANPR by Chamber (number of channels) | 8 channels |
| Enrollment database capacity | 1. Creates up to 20,000 enrollment numbers. 2. List of lock and permissions list |
| Alarms | 16 Entries / 6 Relay No / NC |
| Internal storage | 4 HDD SATA 3.5 "up to 10 tb (not included) |
| Access to third party chambers | Onvif; Panasonic; Sony; Axis; Arecont; Pelco; Canonigo; Samsung |
| Communication | 3xusb Ports/2 RJ45 10/100/1000m (Ethernet) |
| Remote access | Browser (ActiveX), mobile application or PSS software |
| Food | 100 ~ 240 VAC / 13W |
Opinions of our customers
Do you have or have you used the product?
Post comment
Details
SKU
XS-NVR6464A-AI
EAN
8435325475196
