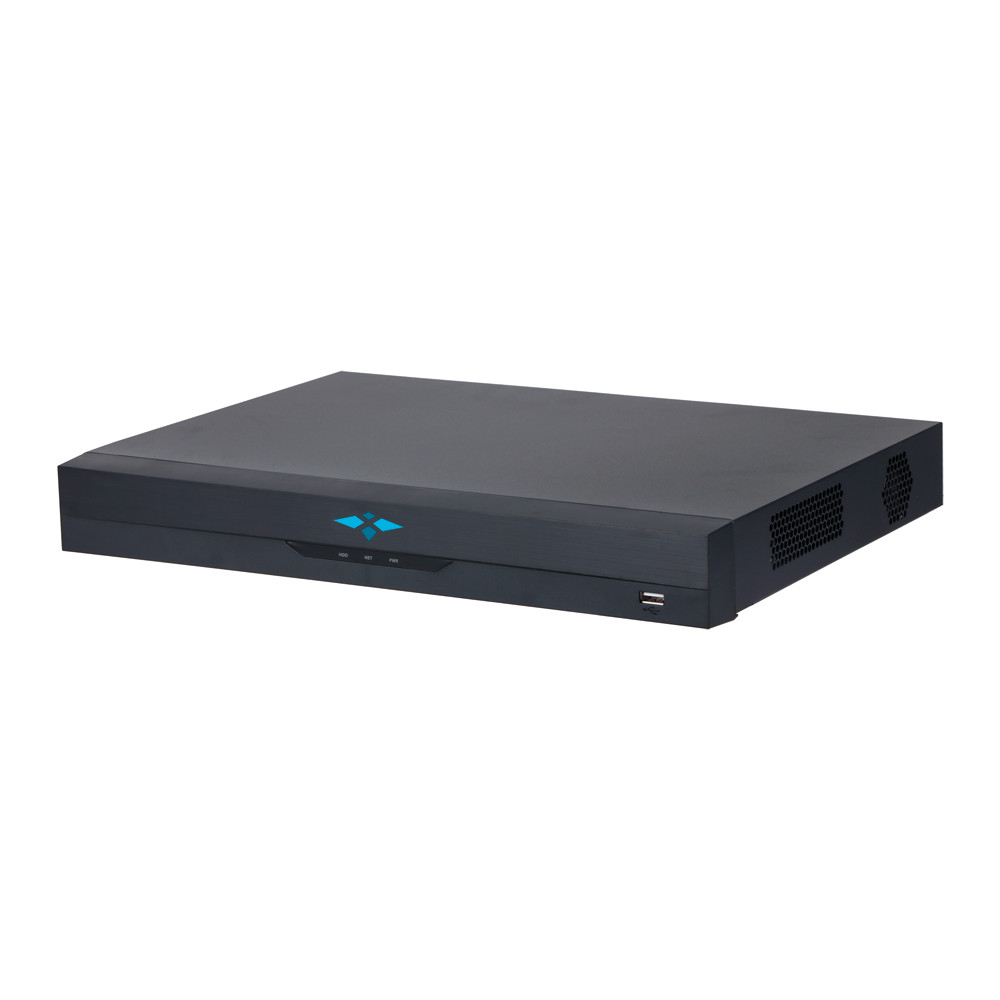

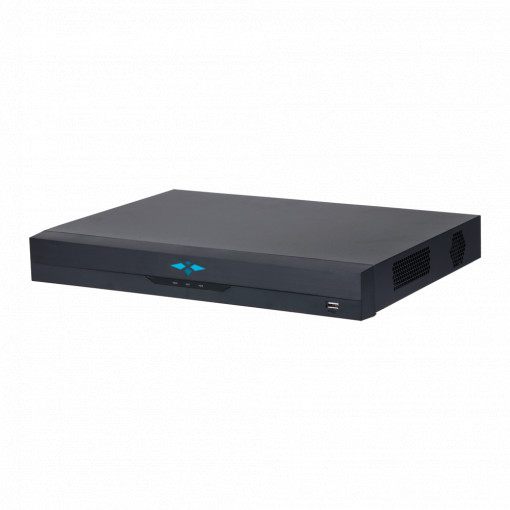

X -SECURITY NVR recorder for IP cameras - Maximum Resolution 16 Megapixel - Smarth.265+ / Smart H.264+ - 32 IP Channels - IP AI - Web, DSS / PSS, Smartphone and NVR
€244.66
(IVA included)
€198.91
(Without IVA)
Delivery cost is not included
Description
| Mark | X-security |
| IP Chambers inputs | LAN port up to 32 channels |
| Video exits | 1 HDMI 4K, 1 VGA |
| Bidirectional audio | 1 input, 1 output, RCA |
| Video Compression Format | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG |
| Decoding capacity | Ai deactivated: 2 channels 16 MP@30 fps; 2 channels 12 MP@30 fps; 4 channels 8 MP@30 fps; 6 channels 5 MP@30 fps; 8 channels 4 MP@30 fps; 16 channels 1080p@30 fps Activated by AI: 1 Channel 16 MP@30 FPS 2 channels 12 MP@30 fps; 3 channels 8 MP@30 fps; 4 channels 5 MP@30 fps; 6 channels 4 MP@30 fps; FPS 12p@1080 of 30 channels |
| Total Band Width | Deactivated AI: 256 input Mbps, 256 Mbps of Recording and 256 Mbps output AMITED BY AI: 180 input Mbps, 180 Mbps of Recording and 180 Mbps output |
| Recording resolution | 16 MP, 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080P, 960P, 720P, D1, CIF |
| Simultaneous multifunction | Pentaplex: direct, recording, reproduction, backup and remote access |
| Alarms | 4 INPUTS / 2 Relay No / NC |
| SMD PLUS | SMD Plus by recorder up to 4 channels: Secondary filtering for human and motorized vehicles, reducing false alarms caused by leaves, rain and variable lighting conditions. SMD Plus per camera up to 8 channels. |
| Perimeter protection | By recorder, up to 2 channels, 10 SIV rules for each channel. By camera, up to 8 channels. |
| Faces detection | Per 1 recorder channel (up to 12 facial images per channel) By camera, up to 8 channels. Sex; Age group; Glasses; Expressions; Mask; Beard |
| Facial recognition | Up to 10 facial databases with 200.00 images, with a total capacity of 2.5 G. Name, gender, date of birth, home, credential type, credential number, countries and regions and state can be added to each facial image. |
| AI facial recognition performance by chamber (number of channels) | 8 channels |
| AI facial recognition performance by recorder (number of channels) | 8 -channel FD (per chamber) + FR (by recorder), Image Flow: 12 FD Images (s) 1 channel (per recorder) + FR (by register), video flow: 12 Image/s facial/s |
| Internal storage | 2 HDD SATA 3.5 "up to 16 tb (not included) |
| Alarms | 4 input relays / 2 output relays |
| Communication | 2XUSB/1 RJ45 10/00/1000m (Ethernet)/16 Ports, 10/100 Mbps, IEEE 802.3 AF-AT |
| Remote access | Browser (Activex), mobile application or Smart PSS software |
| Food | 100–240 VCA, 47-63 Hz |
| Dimensions | 53 (AL) X 329.3 (AN) X 375 (FO) MM / 2.6 kg (No HDD) |
Opinions of our customers
Do you have or have you used the product?
Post comment
Details
SKU
XS-NVR3232A-AI
EAN
8435325475165
