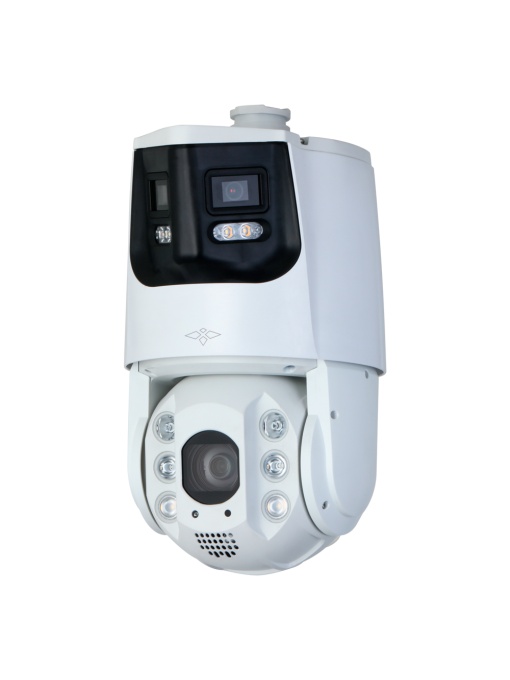

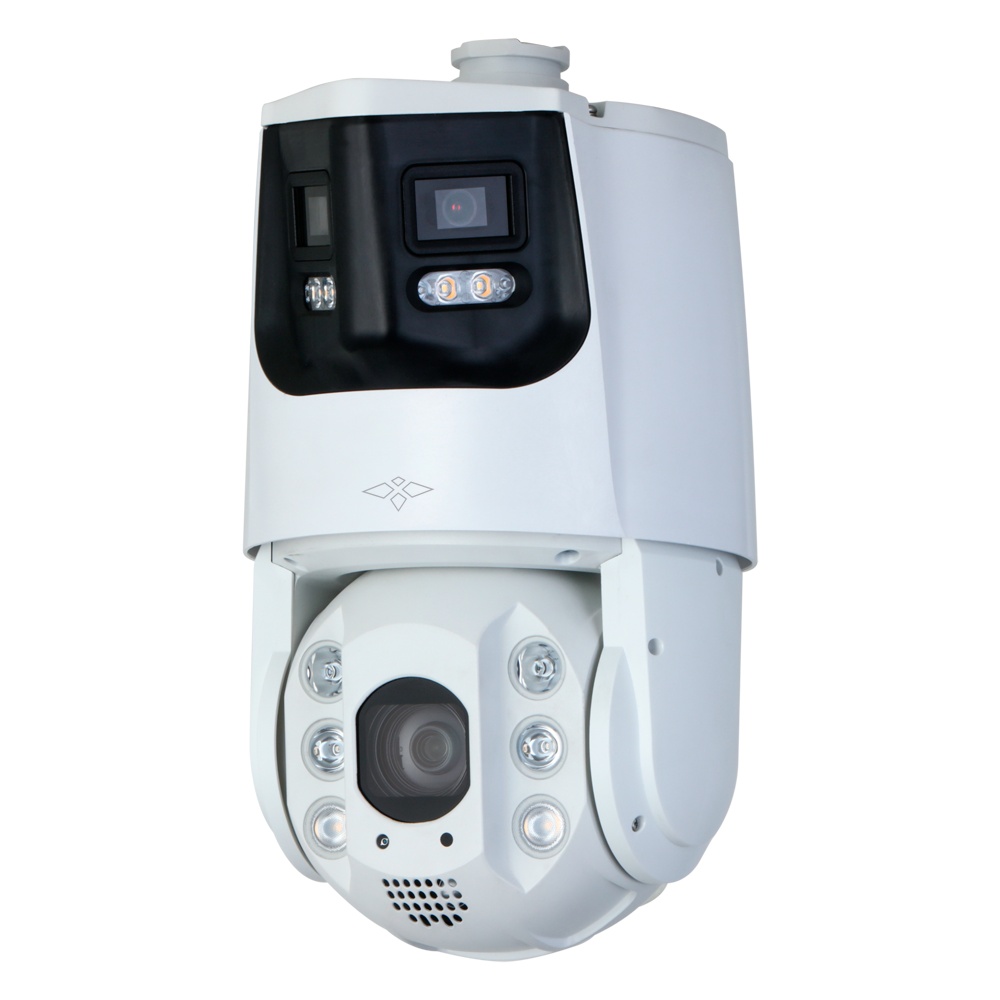

X -Security PTZ IP Gama Ultra - Double Lens (4MPX Panoramic + PTZ 4MPX)) - PTZ 5 ~ 125 mm | 25x | Factor Detection - Panoramic Lens 2.8 mm | Dual Light 200 m - Autotracking | Alarms | Audio | MicroSD | IP66 - IVS | Active Dissuation | Smartlight
€942.76
(IVA included)
€766.47
(Without IVA)
Description
| Mark | X-security |
| Gamma | ULTRA |
| Image sensor | 1/2.8 “Progressive scan cmos |
| Resolution | PTZ: 4 megapixel (2560 × 1440) Panoramic: 4 Megapixel (2560 × 1440) |
| Main Stream Rate | PTZ: 2560x1440 @25fps; 2048x1536 @25fps; 2304x1296 @25fps; 1920x1080 @25fps; 1280x960 @25fps; 1280x720 @25fps Panoramic: 3840x1080 @25fps |
| Extra Stream Rate 1 | PTZ: 704x576 @25fps; 640x480 @25fps; 352x288 @25fps Panoramic: 960x268 @25fps; 704x576 @25fps; 640x480 @25fps; 352x288 @25fps |
| Extra Stream Rate 2 | PTZ: 1280x720 @25fps Panoramic: 1920x540 @25fps; 1920x1080 @25fps; 1280x960 @25fps; 1280x720 @25fps |
| Minimal lighting | PTZ: 0.005 Lux Color@(F1.6, AgC On) / 0 Lux with IV Range IR: 200 m Panoramic: 0.001 Lux Color@(F1.0, AGC On) / P / B: 0.0001 Lux Color@(F1.0, AgC On) White light range: 30 m Star light, color image in poor light conditions |
| Compression | Smart H.265+/ Smart H.264+/ h.265/ h.264H/ h.264b/ h.264m/ mjpeg (extra stream) |
| Bitrate | PTZ: H.264: 2,816 KBPS-13,056 Kbps H.265: 1,024 KBPS-7,936 kbps Panoramic: H.264: 2,816 KBPS-13,824 Kbps H.265: 1,024 KBPS-8.192 Kbps |
| Optical | PTZ: Varifocal 5 ~ 125 mm (optical zoom 25x) Panoramic: 2.8 mm |
| Vision Angle (FOV) | PTZ: H: 53.4 ~ 3.4º, V: 30.4º ~ 1.95º, D: 59.3 ~ 3.9º Panoramic: h: 180º ± 5º, V: 51º |
| Dari | PTZ: 2500 m (D), 987.5 (O), 500 (R), 250 (I) Panoramic: 38.6 m (d), 15.3 (o), 7.7 (r), 3.9 (i) |
| Digital Zoom | 16x |
| Electronic Shutter | PTZ: 1 ~ 1/30,000 s Panoramic: 1 ~ 1/10,000 s |
| Day / night | Mechanical filter ICR removable |
| Auto Focus | PTZ: Semi-Auto, Manual or Automatic |
| Image improvements | WDR (120 dB), BLC, HLC, 2D/3D-DNR, AGC, AWB, Privacy Masking, ROI, FLIP |
| Here (image stabilizer) | Yes |
| Motion detection | Yes |
| SIV (perimeter protection) | Intrusion, Tripwire (both functions support the precise classification and detection of vehicles and people) |
| Faces detection | Supports faces detection, optimization, follow -up, image capture and charging high quality faces photographs. It extracts 6 attributes and 8 expressions. Allows you to cut faces: man, photo of an inch. Capture strategies include real -time capture, optimization and definition of quality priorities. |
| PAN/TILT INTERVAL | Horizontal: 360 °, vertical: -20 ° ~ 90 ° |
| Manual speed | Horizontal: 0.1 ~ 160 °/s, vertical: 0.1 ~ 120 °/s |
| Speed between presets | Horizontal: 240 °/s, vertical: 200 °/s |
| Pre -established positions | 300 Preset, 5 Auto Pattern, 8 Auto Tour, Auto Pan, Auto Scan |
| Autotracking | Yes |
| Internal storage | MicroSD Card Skill up to 512 GB |
| Alarms | 2 INPUTS / 1 OUTPUT |
| Active Deterrence | Siren and stroboscopic flash integrated in the Camera White light Flash duration: 5 ~ 30 s Includes 11 Alarm Sounds |
| Audio | 1 input / 1 output |
| Audio compression | PCM; G.711A; G.711MU; G.726; MPEG2-Layer2; G722.1; G729; G723 |
| PTZ control | Through network access |
| Network interface | Ethernet 10 /100 Baset |
| Remote access | Web Interface, CMS (DMSS/DSS PRO), Smartphone and NVR |
| Interoperability | Onvif (profile s, profile G, profile t), cgi |
| Food | DC 36 V, max. 32 W |
| Temp. operation | -40º C ~ +65º C |
| Degree of protection | IP66 Waterproof |
| Material | ALUMINIO ALCION Y PLASTO |
| Dimensions (without support) | 359.8 mm (a) x 247 mm (p) x 202 mm (c) |
| Weight (without support) | 5.3 kg |
